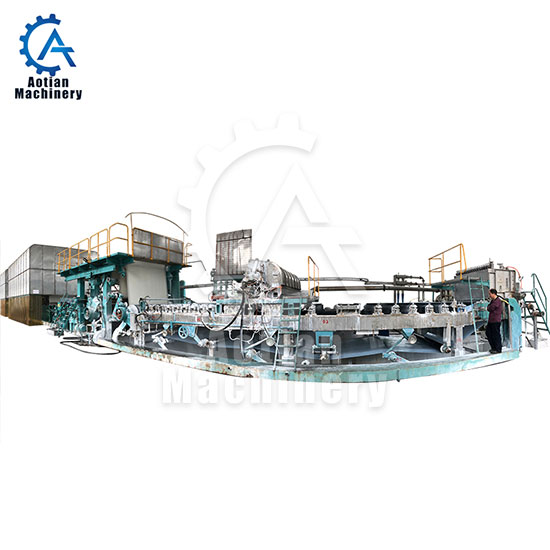

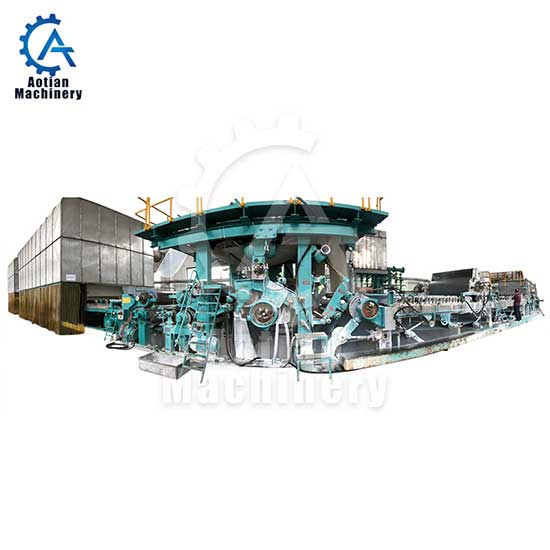

Culture Paper Machine

Name: Writing paper/Copy paper/Culture paper

Model: 787-4800

GSM: 50-120g/㎡

Production: Customization

Working speed: Customization

Center distance: According to models

Transmission form: Use AC frequency conversion and driving by step

Chat Now Inquire Now

Description

Main models: 787,1092,1575,1760,1880,2100,2400,3800,4000,4200,4600,4800Single dryer single cylinder mould, multi dryers multi cylinder mould, foudrinier series paper machine.

Technical Data

Paper grade	Writing paper/Copy paper/Culture paper
Net Paper width	787-4800mm
GSM	50-120g/m2
Production	Customization
Working speed	Customization
Center distance	According to models
Transmission form	Use AC frequency conversion and driving by step

related products

Press roll

The press roll is the main component of the press device. Both ordinary press and positive press use flat roll press. The structure of the flat roll press, the upper roll is a stone roll, and the lower roll is a rubber roll. Both rolls have flat and smooth roll surfaces. The bottom roll of the flat roll press is a rubber-coated cast iron roll.

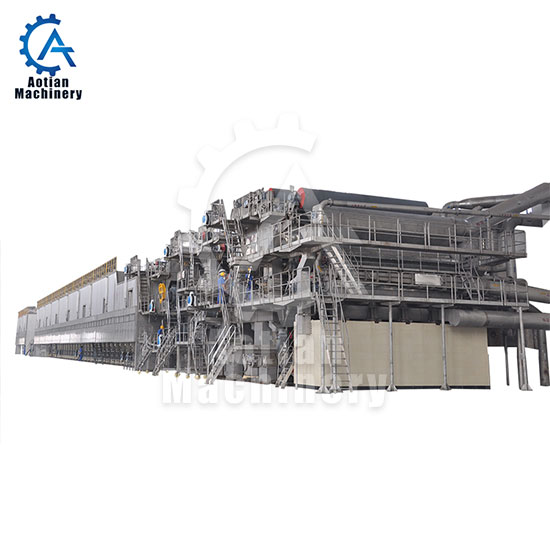

Kraft Paper machine

Main models: 1092, 1575, 1760, 1880, 2100, 2400, 3800,4000,4200,4600,4800,5000,5200,5600 etc. Single dryer single cylinder mould, multi dryers multi cylinder mould, foudrinier series paper machine.

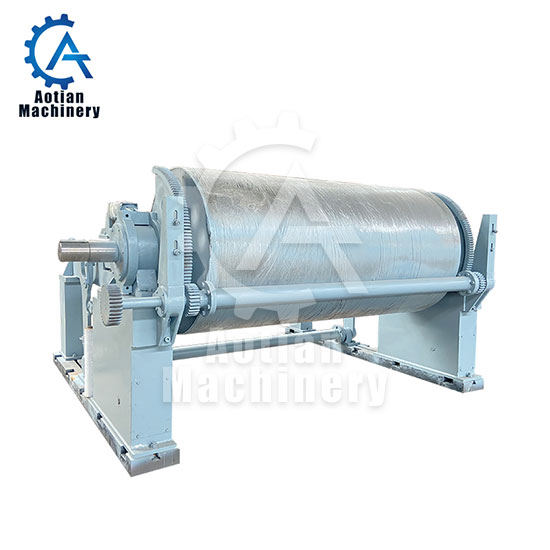

Paper winding machine/Pope reel

This machine is used for the first set of finishing equipment behind the paper machine. The roll cylinder is operated actively, and the roll is driven by friction to complete the paper winding. By adjusting the pressure of the auxiliary arm and the cylinder of the main arm to adjust the linear pressure between the roll and the cylinder, the operation can meet the needs of different kinds of paper and make the paper rolled down from the paper machine into a compact and uniform roll paper.

Fiber Separator

Fiber separator is a pulping equipment used in the papermaking industry. It is mainly used to separate the light and heavy impurities in the pulp and to carry out secondary crushing of the pulp from the hydraulic pulper. It is mainly composed of base, shell, impeller, bearing frame, cutter plate and sieve plate.

Soft calender roll

Its function is to make the paper web density uniform and soft and smooth. It can be lightly pressed on a calender and make the surface of the paper web smoother. Due to the elastic encapsulation, they have excellent heat resistance and scratch resistance. Soft calender rolls are mainly used on soft calenders.

Gravity Thickener

Disc thickener is mainly used for washing and thickening pulp in pulping and paper making process.

Guide roll

Paper machine guide rolls are divided into two types: felt rolls and screen guide rolls. The application parts include pressing, drying, crimping, rewinding and other parts. Felt ducts, wire guide rolls, paper guide rolls, chrome-plated rolls, etc. are all over the front and back of the paper machine. Guide rolls guide and drive the wire and felt in the wet end and drying section of the paper machine. The guide rollers in both areas use the same bearings. However, different lubrication and sealing are used depending on the application location. In the old paper machine, the wet end section is usually lubricated with grease, and the dry section is lubricated with oil. In modern paper machines, both sections are lubricated with oil circulation. Due to different working conditions, the wet end and dry section need to be lubricated with their own oil circulation.

Refiner

The equipment is mainly used for coarse beating, refining and re-pulping of broke and waste paper.

Drum Pulper

Drum pulper belongs to Pulping System of paper machinery and is a more advanced Pulping System.
