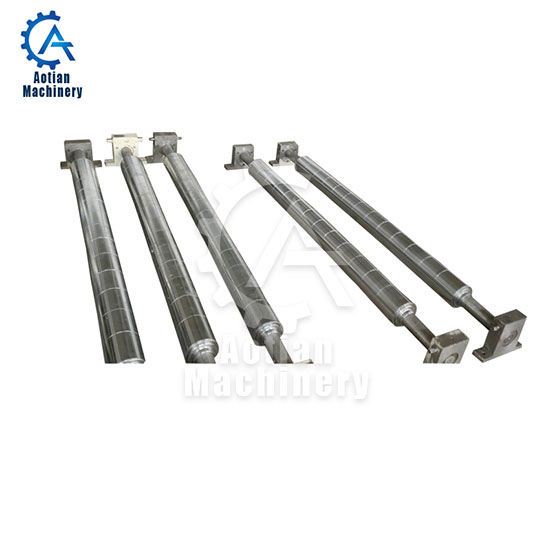

The curved roller is a series of rota table arc rollers installed on the arc shaft to reach the roller that stretches the web, which can eliminate the wrinkles during the web travel and prevent the possible staggering during the material slitting process. . The arc shaft is fixed, and the roll surface is a curved roll that can be rotated. It is used on paper, film, textile and similar products processing equipment, and can also be used in places where other ordinary guide rollers cannot be installed.

Structure Principle

The direction of the arc can be adjusted by the handwheel on the shaft seat. The rubber surface can be expanded and retracted when the rubber sleeve rotates around the bending axis. When the substrate starts to contact the roller surface from the concave arc, it leaves when it runs to the convex arc. , only the central part of the roller surface of the arc roller rotates in a direction parallel to the longitudinal direction, and the other points on both sides of the center of the roller surface rotate at a certain angle to the longitudinal direction, so the substrate is drawn to both sides. stretch, the substrate can be flattened.
