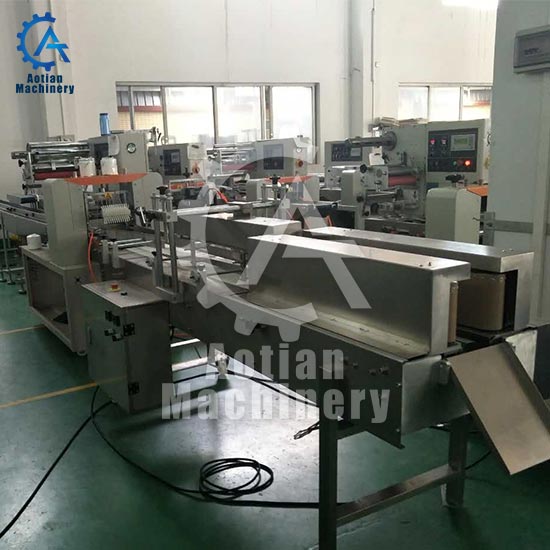

Full auto single toilet roll packing machine

Name: Full auto single toilet roll packing machine

Packing speed: 0-150 /mins

Bag width: 60-200mm

Bag length: 130-350mm

Tissue height: Max.130mm

Film width: Max.450mm

Machine voltage: 220V

Power: 3.0KW 50/60HZ

Machine size: L5020*W720*H1450mm

Weight: 750KG

Features

1:Full servo control system, all independent programming, all controlled by the software to facilitate the function of restructuring and technological upgrading,advanced.

2:human-machine operation, convenient and quick parameter setting.

3:Fault self-diagnosis function, clear failure display.

4:Automatically recognizes the bag length according to tissue products, machine adjustment is simple.

5:Positioned stop function, without sticking knife, CPP and CPP-sided heat sealing film and color packaging films can be packaged, not wasting film.

6:Simple driving system, reliable working, convenient maintenance.

7:It can automatically connect with roll Cutter, without manual working, saving labor costs.

8:Sensitivity photoelectric eye tracking, digital input cut position which makes the cutting position more accurate.

9:No product machine will stop,will not have empty bag. never waste film.

Technical Parameter

Packing speed 0-150 /mins
Bag width 60-200mm
Bag length 130-350mm
Tissue height Max.130mm
Film width Max.450mm
Machine voltage 220V
Power 3.0KW 50/60HZ
Weight 750KG
Machine size L5020*W720*H1450mm
