Gravity Thickener

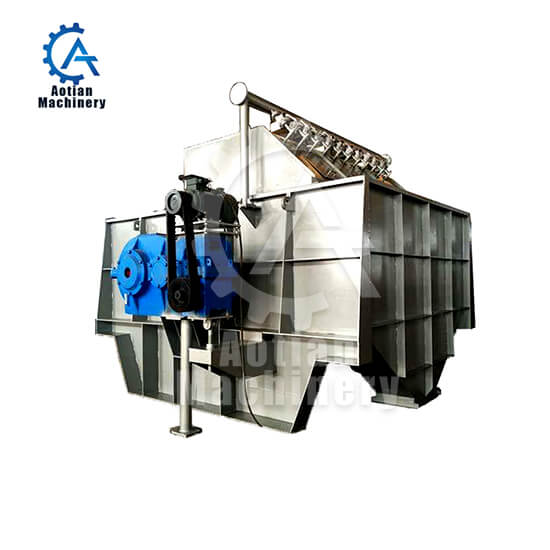

Name: Gravity cylinder thickener

Model: AT22-AT40

Filter Area(m): 10-40

Inlet Consistency(%): 0.3-1.2

Outlet Consistency(%): 4-6

Power(kw):7.5-22

Chat Now Inquire Now

Description

Disc thickener is mainly used for washing and thickening pulp in pulping and paper making process.The pulp at the consistency of 0.8%~1.2% enters into the vat and then is attached to disc sector. The white water in the disc flows into the ends of the hollow shaft through slot and then discharges out. Pulp attached on disc sector is peeled off by high-pressure water.

Technical Data

Product name		Gravity cylinder thickener
Model		AT22	AT23	AT24	AT25	AT30	AT35	AT40
Filter Area(㎡)		10	15	20	25	30	35	40
Inlet Consistency(%)		0.3-1.2
Outlet Consistency(%)		4-6
Power(kw)		7.5	11	11	15	15	18.5	22
Production	Straw Pulp	0.8-1t
	Bulrush Pulp	2-2.5t
	Chemical Wood Pulp	3-3.5t
	Waste Paper Pulp	0.5-2t
