Name: Pressure Screen
Model: AT0.6-AT4
Screen area(m²): 0.6-4
Screen cut scope(mm): 0.15-0.5
Inlet pressure(Mpa): 0.1-0.25
Pulping in-out concentration(%): 0.3-1.2

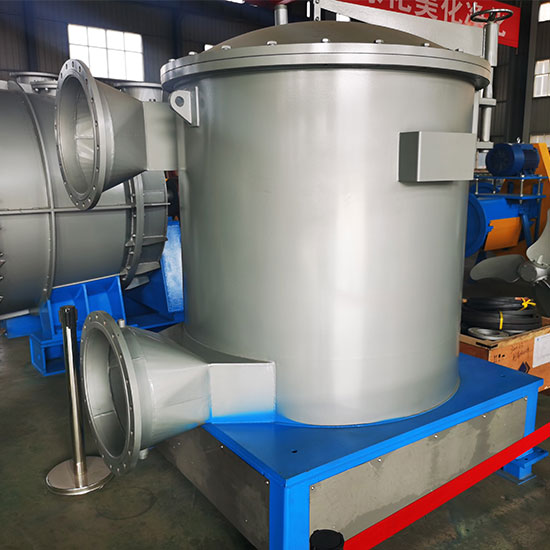

1:Overview of inflow pressure screen
Inflow pressure screen adopts the up-flow structure design of pulp at the bottom, heavy slag discharge at the bottom, and light slag discharge at the top. Light impurities and air in the pulp naturally rise to the top slag discharge port for discharge, and heavy impurities can settle to the bottom for discharge as soon as they enter the body.

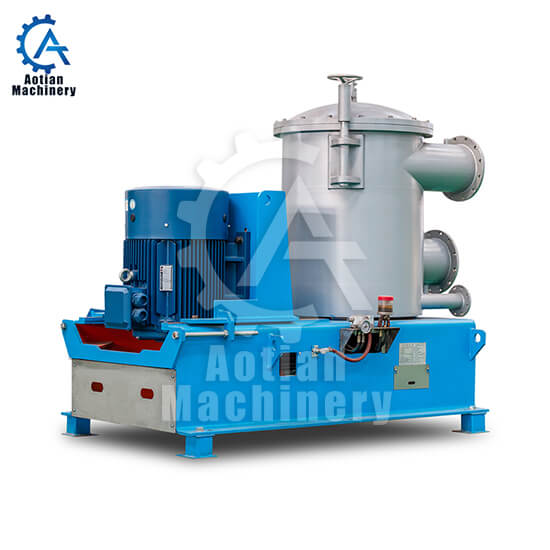

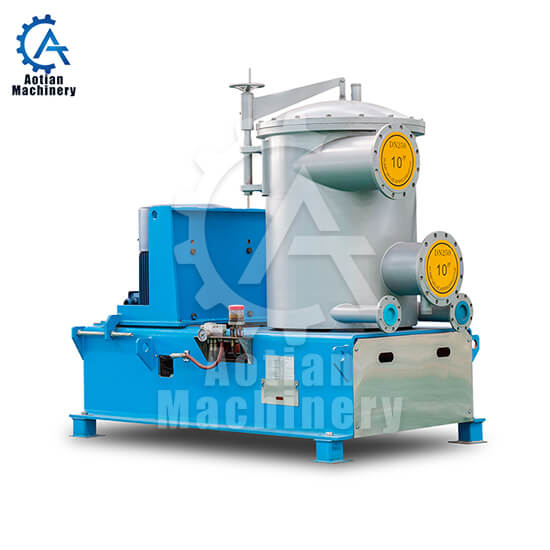

2:Overview of outflow pressure screen
Outflow pressure screen is used for low-concentration screening of paper machine, mechanical pulp, chemical pulp, tailing pulp and waste paper pulp. The inner structure of the pressure screen makes the pulp inlet more smoothly and outlet is more smoother. (Used for coarse screening and fine screening of chemical pulp, waste paper pulp and other pulps. Non-wound multi-rotor block design, gentle pulse, clean pulp, high pulse frequency, and large capacity.)
| Model | AT0.6 | AT0.9 | AT1.2 | AT1.5 | AT2 | AT2.5 | AT3.5 | AT4.5 | AT6 |
| Inlet consistency(%) |
0.5-1.2 |
||||||||
| Inlet pressure(MPa) |
0.1-0.3 |
||||||||
| Motor Power(KW) | 15-22 | 18.5-30 | 22-37 | 30-45 | 37-55 | 37-75 | 45-110 | 55-132 | 75-160 |
| Capacity(t/24h) | 20-30 | 25-60 | 30-80 | 40-120 | 80-210 | 100-230 | 140-280 | 180-350 | 230-500 |
| Model | AT0.4 | AT0.8 | AT1.2 | AT1.5 | AT2.0 | AT3.0 | AT4.0 |
| Screen Area(m2) | 0.4 | 0.8 | 1.2 | 1.5 | 2.0 | 3.0 | 4.0 |
| Screen Hole Size(mm) |
φ1.2-φ3.0 |
||||||
| Screen Slot Size(mm) |
0.15-0.75 |
||||||
| Capacity(t/24h) | 50-100 | 60-200 | 80-300 | 90-360 | 120-450 | 180-600 | 220-900 |
| Inlet Consistency(%) | High consistency 2-5; Low concentration 0.6-2 | ||||||
| Inlet Pressure(MPa) |
0.15-0.3 |
||||||
| Motor Power(KW) | 15-55 | 30-75 | 30-90 | 45-110 | 75-132 | 110-260 | 132-280 |
