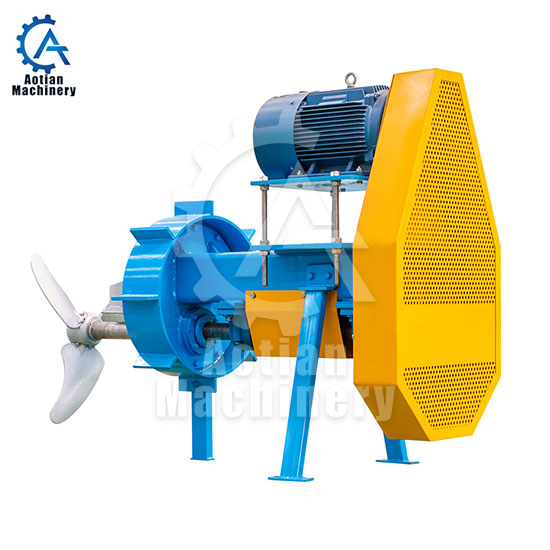

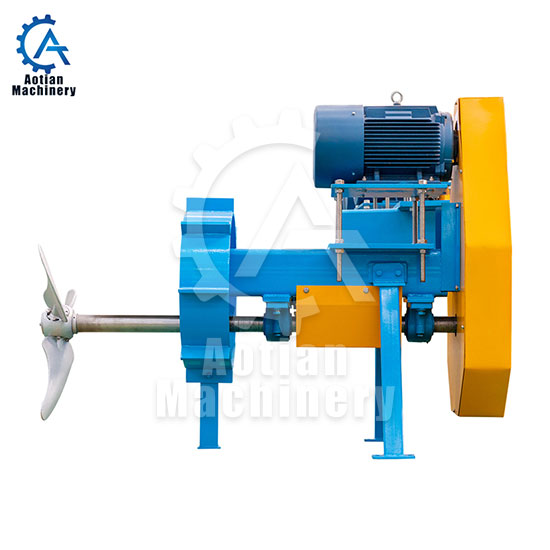

Name: Thruster / propeller
Model: JB500-JB1800
Vane Diameter(mm): 500-1800
Consistency(%): <5
Chest Volume(m³): 20-230
Motor Power(kw): 5.5-75
Thruster is suitable for pulping process of pulping and papermaking enterprises, so that the storage and mixing cycle of pulping materials can achieve uniform mixing, and prevent pulping delamination or precipitation.As for sizing of pulp, it plays an important role of stirring and mixing. The pulp pool propeller is generally used in square slurry pool, pulp storage tower and bleaching tower, etc., which plays a role of circulation and stirring.
| Product name | Thruster propeller | ||||||
| Model | JB500 | JB600 | JB700 | JB750 | JB850 | JB1000 | JB1800 |
| Vane Diameter(mm) | 500 | 600 | 700 | 750 | 850 | 1000 | 1800 |
| Consistency(%) | <5 | ||||||
| Chest Volume(m³) | 20-50 | 30-60 | 35-70 | 40-75 | 50-85 | 70-110 | 150-230 |
| Motor Power(kw) | 5.5/7.5 | 5.5/7.5/11 | 7.5/11/15 | 7.5/11/15 | 11/15/18.5 | 15/18.5/22/30 | 45/55/75 |
