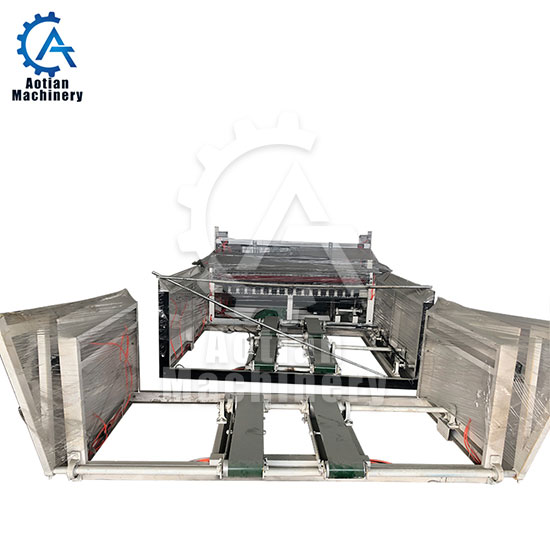

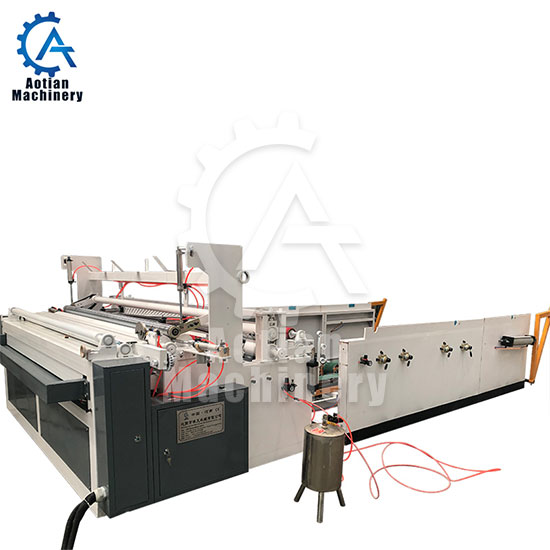

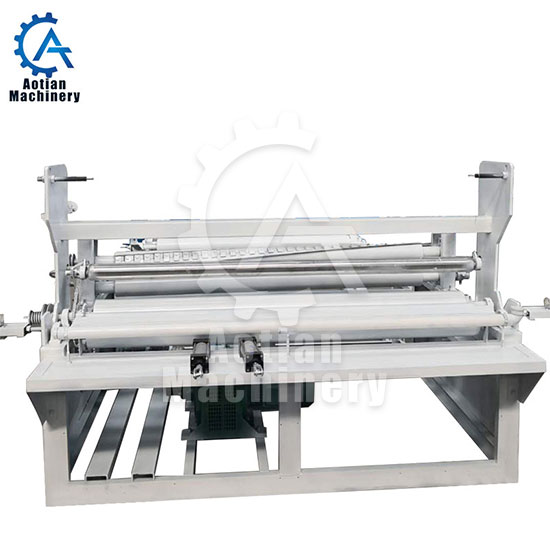

Toilet paper punching rewinding machine

Name: Punching and rewinding machine

Model: Jx-1575,Jx-1880,Jx-3000

Finished size: 50mm-180mm

Finished roll paper core Diameter: 30~55mm

Capacity: 2-3.5t

Weight: 2500kg-5000kg

Power: 5.5Kw

Chat Now Inquire Now

Description

Economical automatic rewinding machine, the whole machine adopts full wall board, easy to operate, high production efficiency, set trimming and sealing in one, it is the best equipment for you to produce high-grade toilet paper roll and improve economic benefits.

Technical Data

Punching and rewinding machine
Model	Jx-1575	Jx-1880	Jx-3000
Speed	0~180m/min	0~280m/min	0~280m/min
Jumbo width	≤1800mm	≤2200mm	≤3050mm
Jumbo Diameter	Within 1100mm (please specify other specifications)		1600mm
Inner Diameter	National standard 76mm (other specifications please specify)
(D*W) Jumbo size	1100*1800	1100*2200	1600*3050
Finished size	50~180mm（ Adjustable）		50mm-180mm
Finished roll paper core Diameter	30~55mm	30~55mm	30-50mm
Capacity	2t	2.5t	3.5t
Weight	2500KG	2800KG	5000KG
Power	5.5KW	5.5KW	Main Motor 7.5Kw, rewinding 4Kw, Back frame 4Kw
Size	6500mm2700mm1750mm	6500mm3650mm1750mm	6500mm4400mm3500mm
Packing size	According to the actual disassembly size
